Tamron 23FM08 C Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Tamron 23FM08 C Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Built for factory automation and machine vision applications, Tamron's 23FM08 lens features a solid mechanism able to withstand long periods of use in an environment experiencing significant vibrations. Utilizing superior optics in a compact size, this high resolution lens is designed to fit today's machinery dimensions and needs only a minimum object distance of 0.26m to achieve outstanding image clarity.

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 8mm
  • Iris Range: F/1.4 - 16
  • Iris Operation: Manual
  • Focus Operation: Manual
  • Mount: C
  • 1/3" Angle of View: 33.1° x 25.0°
  • 1/2" Angle of View: 43.6° x 33.1°
  • 2/3" Angle of View: 59.3° x 45.2°
  • Effective Diameter (Front/Rear Lens): Ø13.7mm/Ø10.4mm
  • Minimum Object Distance: 10.2 in. (0.26m)
  • Back Focus: 11.60mm (in air)
  • Filter Size: M25.5 P=0.5
  • Maximum Diameter: ø1.1 in. (ø29mm)
  • Overall Length: 1.1 in. (27mm)
  • Weight: 1.4 oz. (40 grams)

Request a Quote

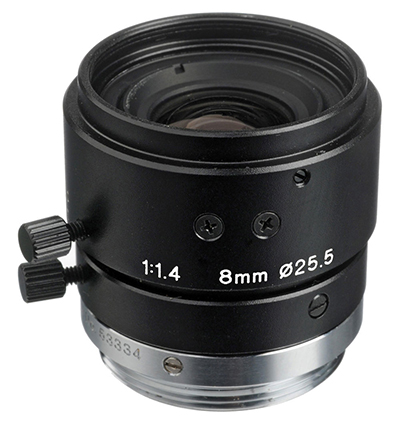

Product image of Tamron 23FM08
Product Photos

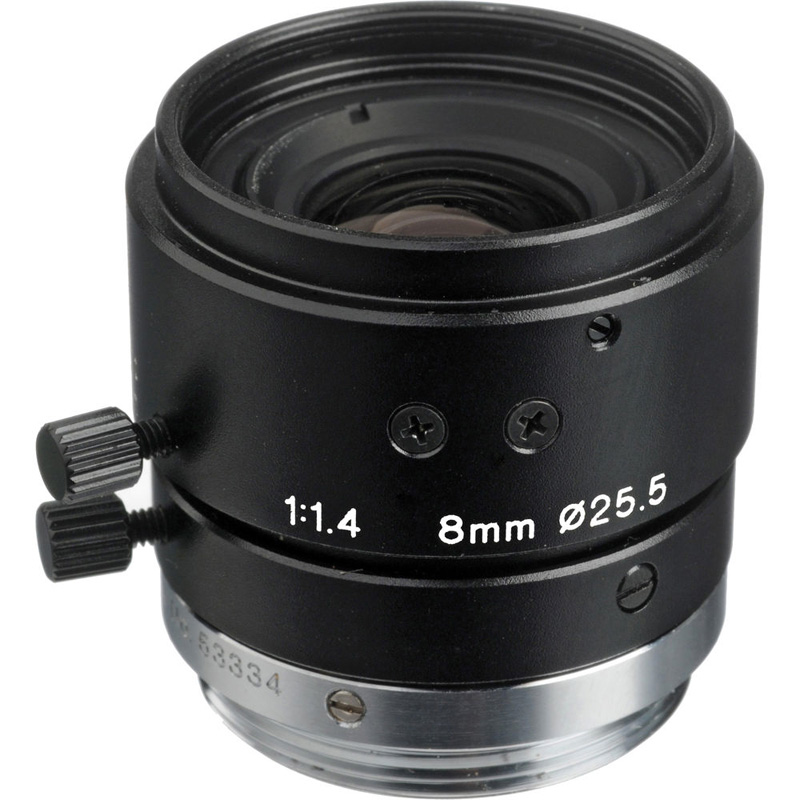

Product image of Tamron 23FM08
Quick Info for the Tamron 23FM08 C Mount Lens
Aperture: 1.4 ~ 16
Focal Length: 8mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
