Tamron 23FM16 C Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Tamron 23FM16 C Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

Designed for factory automation and machine vision applications, Tamron's 23FM16 2/3 16mm F/1.4 lens features a solid construction to withstand the vibrations of factory automation machinery under long periods of use. Utilizing a compact design with superior optics, this high resolution lens fits today's automated apparatus dimensions and needs only a minimum distance of less than 0.3m to achieve sharp image clarity.

Download Product PDF:


  • Focal Length: 16mm
  • Iris Range: F/1.4 - 16
  • Iris Operation: Manual
  • Focus Operation: Manual
  • Mount: C
  • 1/3" Angle of View: 16.9° x 12.7°
  • 1/2" Angle of View: 22.5° x 16.9°
  • 2/3" Angle of View: 30.9°x 23.2°
  • Effective Diameter (Front/Rear Lens): Ø11.5mm/Ø11.5mm
  • Minimum Object Distance: 11.4 in. (0.29m)
  • Back Focus: 11.85mm (in air)
  • Filter Size: M25.5 P=0.5
  • Maximum Diameter: ø1.2 in. (ø30mm)
  • Overall Length: 1.0 in. (25mm)
  • Weight: 1.8 oz. (50grams)

Request a Quote

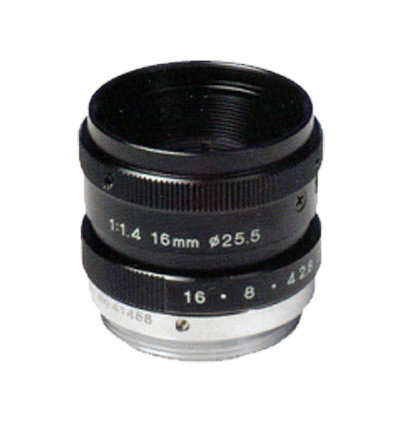

Product image of Tamron 23FM16
Product Photos
Product image of  Tamron 23FM16
Quick Info for the Tamron 23FM16 C Mount Lens
Aperture: 1.4 ~ 16
Focal Length: 16mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
