Designed for use with 1.3 and higher megapixel cameras, Tamron's 23FM25SP lens employs superior optics to provide outstanding corner to corner performance with zero percent distortion. With a minimum focusing range of less than 015m, this lens is particularly suited for use with machine vision and pharmaceuticals or similar applications requiring highly detailed close-up image capture.

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 25mm
  • Iris Range: F/1.4-22
  • Iris Operation: Manual w/lock
  • Focus Operation: Manual w/lock
  • Mount: C
  • 1/3" Angle of View: 11.0° x 8.2°
  • 1/2" Angle of View: 14.6° x 11.0°
  • 2/3" Angle of View: 20.0°x 15.1°
  • Effective Diameter (Front/Rear Lens): Ø23.5mm/Ø16.5mm
  • Minimum Object Distance: 0.15m
  • Back Focus: 17.17mm (in air)
  • Filter Size: M30.5 P=0.5
  • Maximum Diameter: ø34mm
  • Overall Length: 52.2mm
  • Weight: 103g

Request a Quote

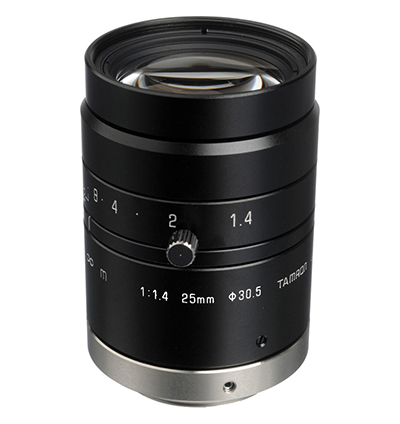

Product image of Tamron 23FM25SP
Product Photos

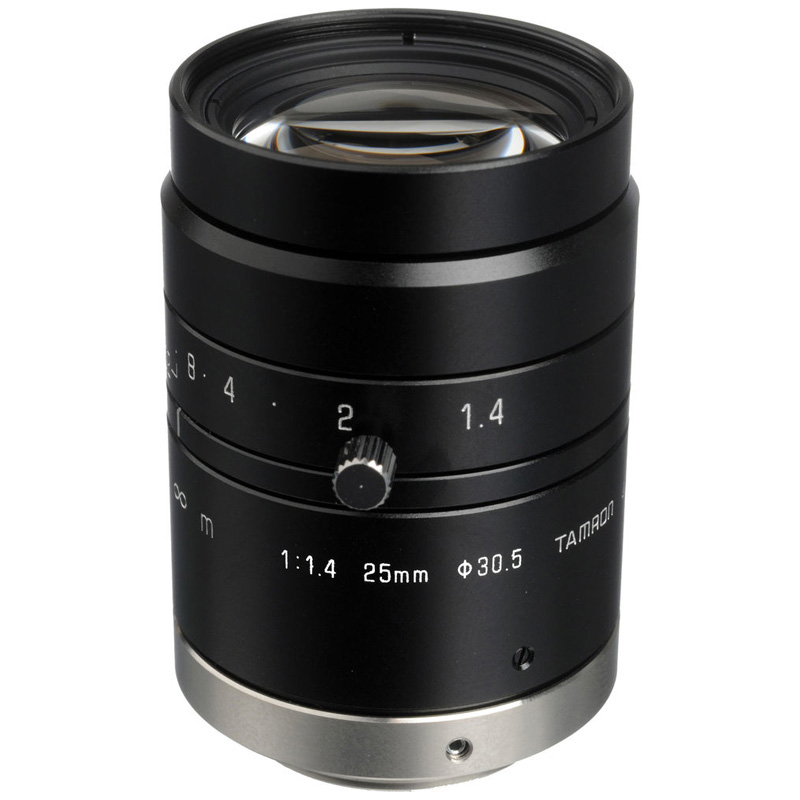

Product image of Tamron 23FM25SP
Quick Info for the Tamron 23FM25SP C Mount Lens
Aperture: 1.4 ~ 22
Focal Length: 25mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
