Built for factory automation and machine vision applications, Tamron's 23FM50 lens uses a solid mechanism to withstand long periods of operation in conditions with significant vibrations. Utilizing superior optics in a compact size, this high resolution lens is designed to fit today's machinery dimensions and needs only a minimum object distance of 0.44m to achieve outstanding image clarity.

Download Product PDF:


  • Focal Length: 50mm
  • Iris Range: F/2.8 - 22
  • Iris Operation: Manual
  • Focus Operation: Manual
  • Mount: C
  • 1/3" Angle of View (wide/telephoto): 5.5° x 4.1°
  • 1/2" Angle of View (wide/telephoto): 7.3° x 5.5°
  • 2/3" Angle of View (wide/telephoto): 10.0°x 7.5°
  • Effective Diameter (Front/Rear Lens): Ø17.5mm/Ø10.8mm
  • Minimum Object Distance: 17.3 in. (0.44m)
  • Back Focus: 22.10mm (in air)
  • Filter Size: M25.5 P=0.5
  • Maximum Diameter: ø1.1 in. (ø29mm)
  • Overall Length: 1.5 in. (38.5mm)
  • Weight: 1.8 oz. (52 grams)

Request a Quote

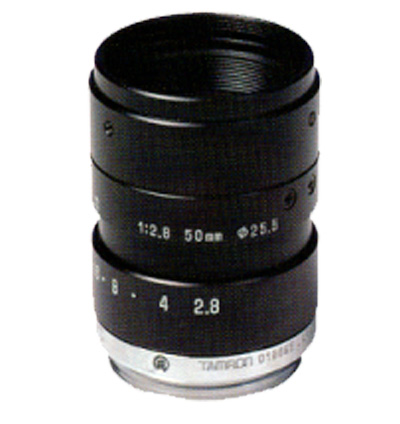

Product image of Tamron 23FM50
Product Photos
Product image of  Tamron 23FM50
Quick Info for the Tamron 23FM50 C Mount Lens
Aperture: 2.8 ~ 22
Focal Length: 50mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
