Tamron 23FM75L C Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Tamron 23FM75L C Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

Built for factory automation and machine vision applications, Tamron's 23FM75-L lens features a screw mechanism to lock-in the focus and iris rings and is ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, this high resolution lens is designed to fit today's machinery dimensions and needs only a minumum focusing range of 0.5m to achieve outstanding quality.

Download Product PDF:


  • Focal Length: 75mm
  • Iris Range: F/3.9-32
  • Iris Operation: Manual w/Lock
  • Focus Operation: Manual w/Lock
  • Mount: C
  • 1/3" Angle of View (wide/telephoto): 3.5° x 2.5°
  • 1/2" Angle of View (wide/telephoto): 5.0° x 3.5°
  • 2/3" Angle of View (wide/telephoto): 6.9°x 5.2°
  • Effective Diameter (Front/Rear Lens): Ø18.4mm/Ø10.7mm
  • Minimum Object Distance: 19.7 in. (0.5m)
  • Back Focus: 27.115mm (in air)
  • Filter Size: M25.5 P=0.5
  • Maximum Diameter: ø1.1 in. (ø29mm)
  • Overall Length: 2.6 in. (65.5mm)
  • Weight: 2.4 oz. (68 grams)

Request a Quote

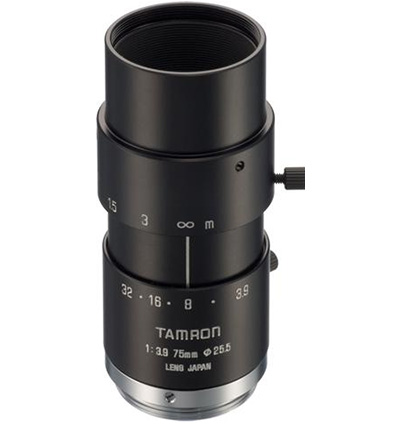

Product image of Tamron 23FM75L
Product Photos
Product image of  Tamron 23FM75L
Quick Info for the Tamron 23FM75L C Mount Lens
Aperture: 3.9 ~ 32
Focal Length: 75mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
