Baumer TXG08 Camera - Digital Monochrome Matrix, 0.8 Megapixels, Gigabit Ethernet

Sophisticated characteristics are combined in the Baumer TX digital matrix camera series. Maximum signal and image quality are ensured with all models and configurations even under harsh environmental conditions. Thus, almost unlimited applications are enabled by the TX series. Reproducible measurement results and very reliable operation are achieved thanks to the clever thermal management and the robust industrial design. The functionality of these devices complies with the GenICam standard.

The TX cameras are available with FireWire™ or Gigabit Ethernet. Innovative extensions such as Power over Ethernet (PoE) or multiple digital input and output ports are additional options.

FEATURES:

  • Gigabit Ethernet progressive scan CCD camera
  • 1032 x 776 pixel
  • Up to 28 full frames per second
  • GigE Vision® standard compliant
  • Outstanding image quality
  • High sensitivity and dynamic range
  • High quality slow scan mode for lowest readout noise
  • Binning and true partial scan function (ROI) for increased
    frame rates
  • External synchronization via industrial compliant process
    interface (trigger / flash)
  • Integrated supplementary function for flexible integration
  • Sequence function up to 231-1 frames per sequence
  • Jumbo frames supported
  • Integrated 32 MByte RAM for temporarily image data
    buffering
  • Camera parameter programmable in real-time
  • Ultra compact and lightweight aluminum housing
  • Standard RJ45 connector
  • Screw-lock type industrial connector
  • Baumer-GAPI: Flexible, generic software interface for
    Windows / Linux

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor: 1/3" interline progressive scan CCD
  • Shutter / readout mode: global shutter / progressive scan readout
  • Number of pixel: 1032 x 776
  • Scan area: 4.80 mm x 3.61 mm
  • Pixel size: 4.65 μm x 4.65 μm
  • Color filter: -
  • Pixel clock: 29.75 MHz fast scan / 14.87 MHz high quality (HQ) scan
  • Image data buffer: max. 7 images
  • Optical interface: C-Mount on request: CS-Mount
  • Dimensions: 36 x 36 x 48 mm
  • Weight: < 90 g
  • Network interface: 1000BASE-T (1000 Mbit / sec)

Request a Quote

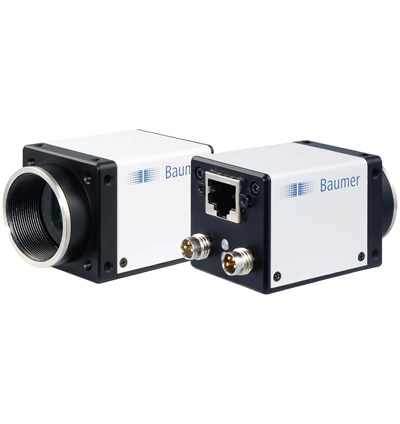

Product image of Baumer TXG08

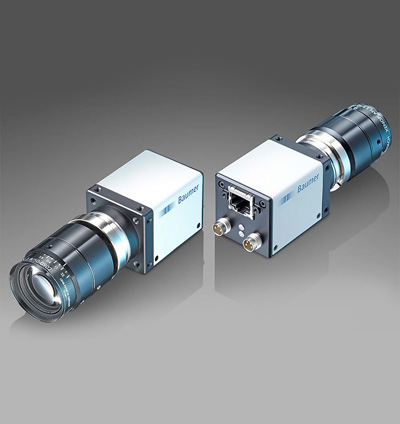

Product image of Baumer TXG08
Product Photos

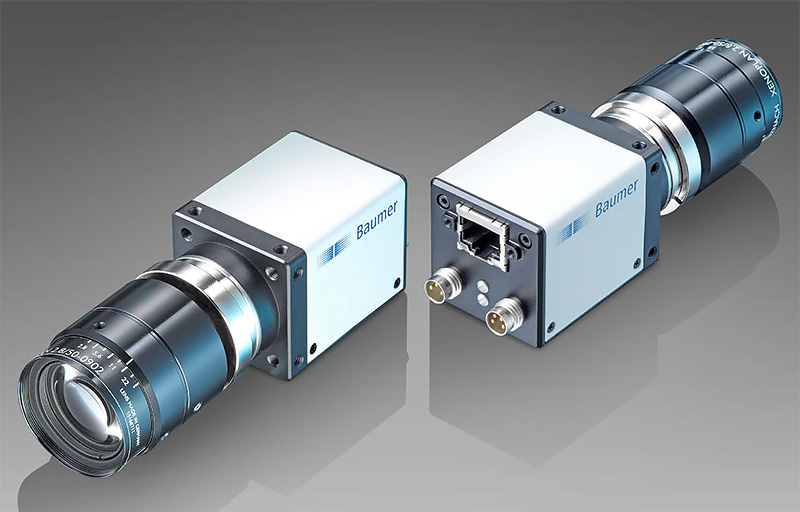

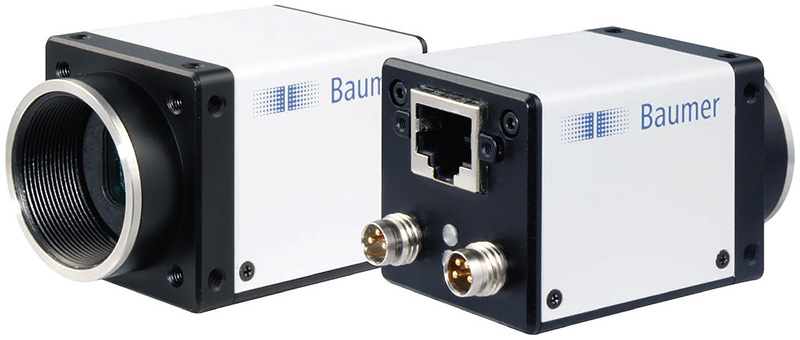

Product image of  Baumer TXG08 Product image of  Baumer TXG08

Quick Info for the Baumer TXG08

Camera Category: -
Camera Series: TX Digital Matrix
FPS: 28
Interface: GigE
Manufacturer: Baumer
Resolutions: Under 1 MP
Scanning Mode: -
Signal System: Digital Monochrome
