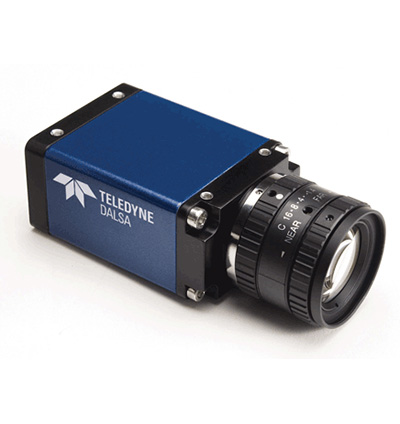

Dalsa C640-1/2 Camera

The Dalsa Genie C640-1/2 uses a Sony CCD, Color sensor with a resolution of 640 x 480.

Operating at 64 frames per second at full resolution, the Dalsa Genie C640-1/2 camera takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100m. Like all Genie cameras, the C640 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

• Active resolution of 640 x 480
• 24-bits Pixel Depth RGB
• High frame rates with vertical windowing, up to 580 fps
• On-board Color Conversion
• Engineered with DALSA's Trigger-to-Image Reliability framework
• GigE Vision compliant
• Available in 1/3” or ½” sensor version
• Engineered to accommodate industrial style, screw mount, RJ-45 connectors

Download Product PDF:

• Dalsa C640-1/2 Camera

TECHNICAL INFORMATION:

• Active Resolution: 640 x 480
• Frame Rate: 64 fps
• Pixel Size: 9.9 µm
• Data Format: 32-bits, YUV or Raw Bayer
• Exposure Control: Programmable, or via External Trigger
• Dynamic Range: 57 dB
• Nominal Gain Range: -6 dB to +12 dB
• Output: Gigabit Ethernet, also supports 100 Mbps
• I/O Ports: 2 opto-isolated input, 2 opto-isolated output
• Lens Mount: C
• Size: 44 mm x 29 mm x 67 mm (including lens adapter)
• Mass: ~115 g (without lens)
• Operating Temp: 0°–45°C
• Power Supply: 12 V
• Power Dissipation: 4W
• Data Connector: Standard or Screw mount RJ-45
• Power and I/O: Hirose 12-Pin
• Software Platform: DALSA Sapera LT
• GigE Vision Compliant: Yes
• Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
• Part Number: CR-GEN0-C640x
