JAI GO-2401-PGE Camera
Get a Quote for the JAI GO-2401-PGE
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
GO-2401C-PGE
GO-2401M-PGE
GO-2401-PGE produces high image quality at lower cost
The GO-2401-PGE incorporates Sony's IMX249 CMOS imager to give customers most of the functionality of the GO-2400-PGE at an even lower price point. It provides an alternative for customers who don't need the full 48.8 fps frame rate of the GO-2400-PGE, and whose applications can function with a minimum 73 microsecond global shutter speed, instead of the 38 microsecond minimum found in the GO-2400.
The GO-2401-PGE uses the remarkable low-noise performance of the Sony Pregius imager technology to produce best-in-class quality in an entry-level package. Two models are available, each offering 2.35 megapixels of resolution in a 1936 x 1216 format at 32.8 fps.
The GO-2401M-PGE provides 8-bit, 10-bit, or 12-bit monochrome output, while the GO-2401C-PGE offers 8-bit, 10-bit, or 12-bit raw Bayer color output. Flexible ROI capabilities allow users to window the output to smaller sizes to take advantage of smaller lens formats than the camera's full 1/1.2" C-mount format.
The GO-2401-PGE has the same form factor as other Go Series cameras (29 x 29 x 41.5 mm, 46 grams) making it among the smallest and lightest 2-megapixel industrial cameras available. It is also built to industrial grade specifications, including an 80G shock rating, 10G vibration rating, and a standard operating temperature range of -5°C to +45°C.
Standard features include pixel blemish compensation and shading correction functions, a built-in 256-point look-up table for gamma customization, and a multi-ROI mode supporting up to 5 overlapping regions within a single frame. Monochrome models are also equipped with a binning function (1x2, 2x1, 2x2) for increasing pixel sensitivity.
The GO-2400-PGE also includes a sequence trigger function, as well as JAI’s Auto Level Control (ALC), which combines auto gain and auto shutter capabilities in an integrated function to let users optimize their auto exposure control for lowest noise, fastest shutter, or other priorities.

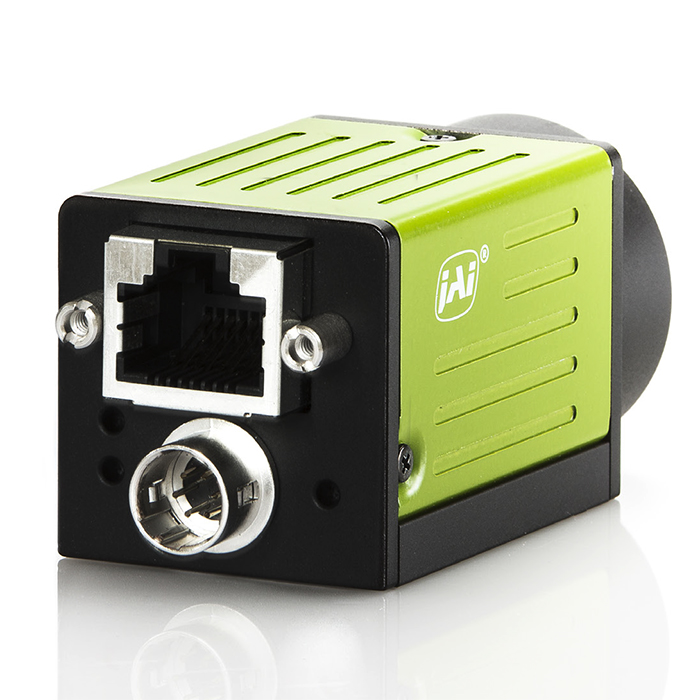

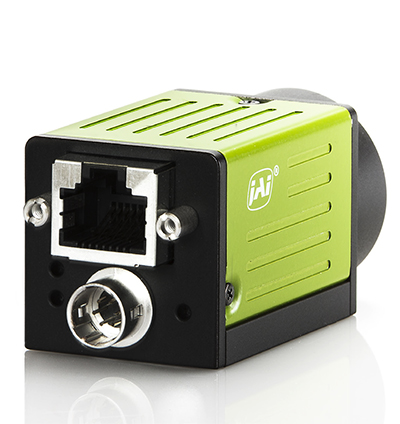

Power can be supplied through the GigE Vision interface or via a 6-pin Hirose connector which also provides connections for external triggers and GPIO.
With their small size and high image quality, GO-2401-PGE cameras are well suited to a wide range of applications including medical and scientific uses, as well as robotics and high precision inspection systems.

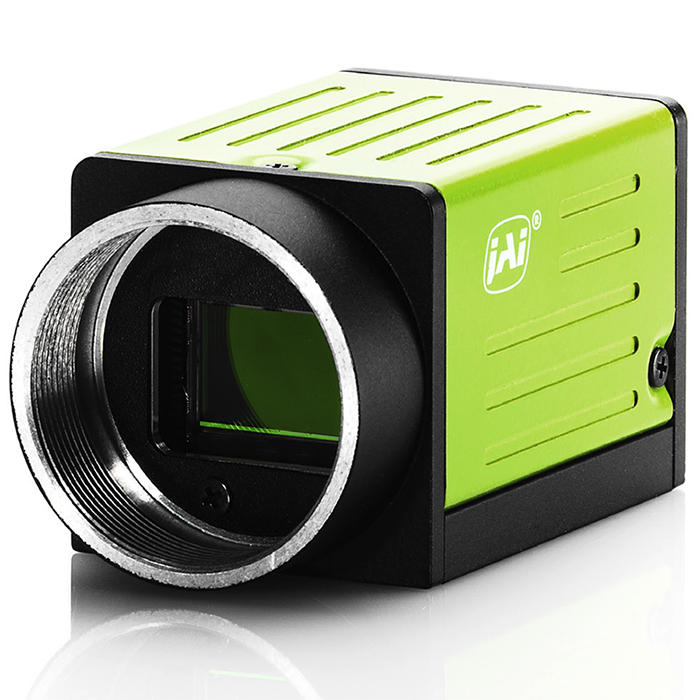

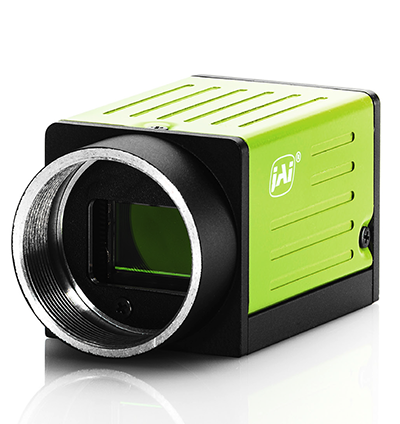

Uses C-mount lenses.
Dimensions (HxWxL): 29 x 29 x 41.5 mm (excluding lens mount).
Download Product PDF:
TECHNICAL INFORMATION:
- 2.35-megapixel 1/1.2” CMOS imager (global shutter)
- Up to 32.8 fps at full resolution
- 5.86 μm square pixels
- Small size (29 x 29 x 41.5 mm, excluding lens mount)
- 8/10/12-bit output in choice of monochrome or raw Bayer color models
- Exposure control from 73 μs to 8 seconds in 1 μs steps
- 2X binning for increased sensitivity (monochrome only)
- Single and multi-ROI modes for flexible windowing and use of smaller optics
- Automatic Level Control (ALC) for dynamic lighting conditions
- Accepts power over GigE Vision interface or separate 6-pin connector
- C-mount lens mount
Quick Info for the JAI GO-2401C-PGE
| Camera Category: | Industrial |
|---|---|
| Camera Series: | Go |
| FPS: | 32 |
| Interface: | GigE |
| Manufacturer: | JAI |
| Resolutions: | 2.3 MP |
| Scanning Mode: | - |
| Signal System: | Color |
| Technology: | GigE Cameras |
Quick Info for the JAI GO-2401M-PGE
| Camera Category: | Industrial |
|---|---|
| Camera Series: | Go |
| FPS: | 32 |
| Interface: | GigE |
| Manufacturer: | JAI |
| Resolutions: | 2.3 MP |
| Scanning Mode: | - |
| Signal System: | Monochrome |
| Technology: | GigE Cameras |
