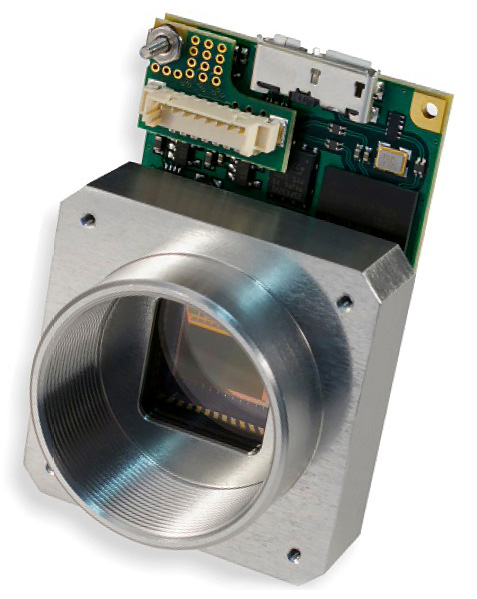

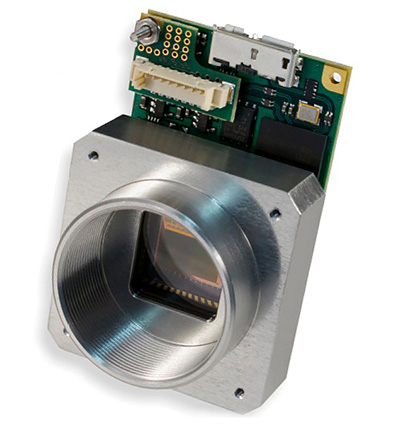

PixeLINK PL-D721 Camera
Get a Quote for the PixeLINK PL-D721
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
PL-D721-C
PL-D721-M
PL-D721: Fast Frame Rates. High Resolution. Low Noise.
The PL-D721-C color USB 3.0 camera provides high resolution, low noise images for outstanding value in a broad range of industrial applications. The PL-D721-C color USB camera features a 1.3 megapixel (1280 x 1024) resolution imager capableof 150 fps at full resolution.
The PL-D721 series of USB cameras is based on a ON Semiconductor CMOS global shutter sensor with a 1/2” optical format.The extensive built-in image pre-processing possibilities result in outstanding image quality, less load onthe system, and higher performance.
Users can choose 8-bit or 10-bit digitization and a dynamicrange of 53dB and 90dB using the camera’s Extended Shutter. The external hardware trigger and 2 general-purpose outputs give users the flexibility to synchronize the camera with their specific processes and illumination.
CAMERA & LENS PAIRING SOLUTIONS
The Resolv4k, 12X Zoom and Zoom 6000 lens systems seamlessly integrate with Pixelink CMOS cameras giving you high-resolution, low-noise digital imaging solutions backed by industry leading sales and technical support.
PL-D721 FEATURES:
- 1.3MP (1280 x 1024) Resolution
- CMOS Global Shutter
- Monochrome and Color
- 150 fps at full resolution
- USB 3.0
- Flexible Region of Interest (8 pixel H x 32 pixel W granularity)
- 1 trigger input, 2 general purpose outputs (3.3V)
- Great image quality
- Compact size
- Enclosed or Board Level models available
- One common API for all cameras
- Free professional technical assistance
- Tethered sensor head option 6”/12” (*Board Level version only)
- Extended shutter mode
- Auto & manual exposure
- Programmable LUT
- Auto & Manual White Balance
- Color Temperature
- Gain
- Gamma
- Saturation
- Histogram
- Image Flip & Rotate
- Callbacks (Image Filters)
Download Product PDF:
TECHNICAL INFORMATION:
- Sensor: ON Semiconductor CMOS
- Sensor Type: CMOS Global Shutter
- Resolution: 1280(H) x 1024(V) 1.3 MP Color & Mono
- Pixel Pitch: 4.8 μm x 4.8 μm
- Active Area: 6.144 mm x 4.92 mm - 7.87 mm diagonal
- Peak: QE 53 %
- Max Datarate: 248MHz
- Bit Depth: 8 or 10-bit
- Color Data Formats: Bayer 8, Bayer 16 and YUV422
- Interface / Date rate: USB 3.0/ Micro-B / 5Gbps
- Board Level Trigger Connector: 8-pin Molex 1.25mm pitch
- Enclosed Trigger Connector: Hirose round 8-pin
- Trigger Modes: Software and hardware
- Board Level Trigger Input: 1 input, 3.3V (with internal pullup resistor)
- Enclosed Trigger: Input 1 optically Isolated, 5-12V DC at 4-11 mA
- Board Level GPO/Strobe: 2 outputs, 3.3V
- Enclosed GPO/Strobe: 2 outputs, 3.3V and 1 optically isolated max 40V DC, max 15mA
- Dimensions: 32 x 48 x 11 mm (without lens mount)
- Weight: 35.8 g (without optics)
- Mounting: Holes for 0-80 hardware
- Lens Mount: C-mount, CS-mount and S-mount
Quick Info for the PixeLINK PL-D721-C
Camera Category: | Area Scan |
---|---|
Camera Series: | Industrial Vision Cameras |
FPS: | 150 |
Interface: | USB3 Vision |
Manufacturer: | PixeLINK |
Resolutions: | 1.3 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | USB3 Vision Cameras |
Quick Info for the PixeLINK PL-D721-M
Camera Category: | Area Scan |
---|---|
Camera Series: | Industrial Vision Cameras |
FPS: | 150 |
Interface: | USB3 Vision |
Manufacturer: | PixeLINK |
Resolutions: | 1.3 MP |
Scanning Mode: | - |
Signal System: | Monochrome |
Technology: | USB3 Vision Cameras |
