PixeLINK PL-D755 Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the PixeLINK PL-D755

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • PL-D755C

  • PL-D755M

The PL-D family of USB 3.0 cameras links together the benefits of high frame rate CMOS technology with the high speed data throughput of USB 3.0 technology.

The PL-D755 camera provides low noise images for outstanding value in a broad range of industrial applications. The camera features a 5.01 megapixel (2448 x 2048) resolution imager.

The PL-D755 cameras are based on an Sony IMX250 CMOS global shutter sensor with a 2/3” optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance. These cameras provide the user choice of 8-bit or 12-bit digitization and have a dynamic range of up to 70db. The external hardware trigger and 2 general-purpose outputs ensure users have the flexibility to synchronize the camera with their processes and illumination.

Pixelink’s industry leading SDK uses a common API for all cameras regardless of the chosen interface. Software code
developed for one camera is easily transferred to other Pixelink models without the need to recompile. Overall system costs are reduced and camera integration is simplified.

The flexible Region of Interest (ROI) control allows users to operate at higher frame rates by placing a lower resolution “window” on the imager at any location.

CAMERA & LENS PAIRING SOLUTIONS

The Resolv4k, 12X Zoom and Zoom 6000 lens systems seamlessly integrate with Pixelink CMOS cameras giving you high-resolution, low-noise digital imaging solutions backed by industry leading sales and technical support.

Download Product PDF:

TECHNICAL INFORMATION:

FEATURES

  • Great image quality
  • Compact size
  • One common API for all cameras
  • Board level and enclosed models
  • Tethered sensor head option 6”/12” (*Board Level version only)
  • Auto & manual exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)

SENSOR FEATURES

  • 5.01 MP (2448 x 2048) Resolution
  • CMOS Global Shutter
  • Flexible Region of Interest (64 pixel H x 64 pixel W granularity)
  • 8-bit or 12-bit digitization

SOFTWARE FEATURES

  • Pixelink Capture Software - a test and configuration software, with real-time, interactive multi-camera application.
  • Pixelink SDK - providing full access to the Pixelink API, as well as sample applications with full source code.





Request a Quote

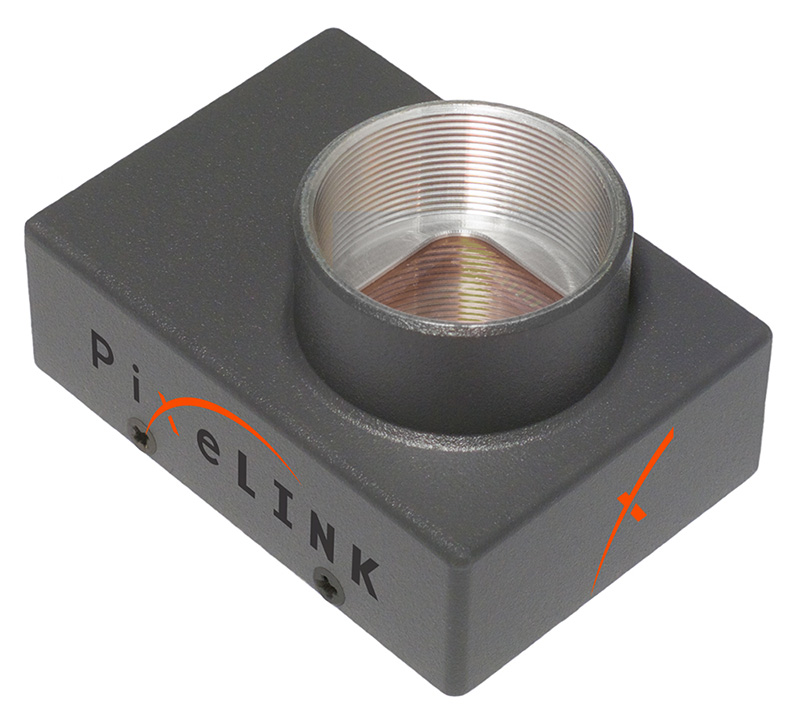

Product image of PixeLINK PL-D755
Product Photos

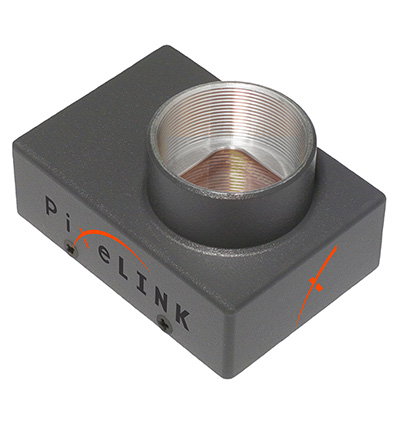

Product image of  PixeLINK PL-D755

Quick Info for the PixeLINK PL-D755C

Camera Category: Area Scan
Camera Series: Industrial Vision Cameras
FPS: 75
Interface: USB3 Vision
Manufacturer: PixeLINK
Resolutions: 5 MP
Scanning Mode: -
Signal System: Color

Quick Info for the PixeLINK PL-D755M

Camera Category: Area Scan
Camera Series: Industrial Vision Cameras
FPS: 75
Interface: USB3 Vision
Manufacturer: PixeLINK
Resolutions: 5 MP
Scanning Mode: -
Signal System: Monochrome
