PixeLINK PL-D775 Camera
Get a Quote for the PixeLINK PL-D775
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:

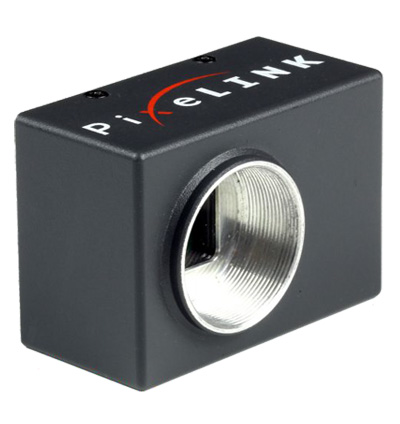

PL-D775CU

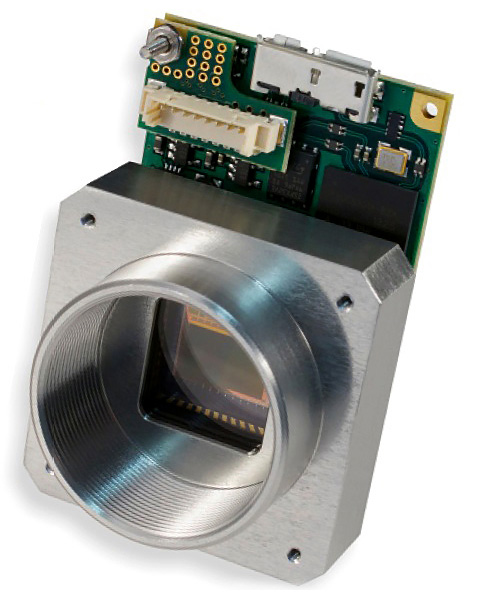

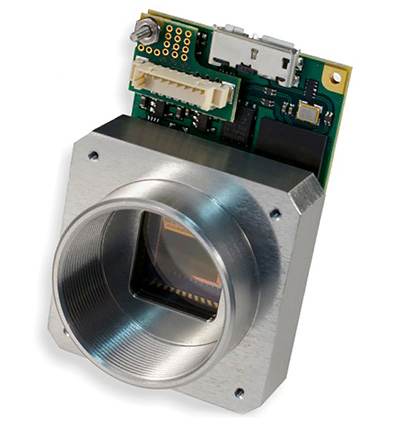

PL-D775CU-BL
PL-D775MU
PL-D775MU-BL
PL-D775 CMOS, Rolling Shutter Camera
The PL-D family of cameras links together the benefits of high frame rate CMOS technology with the high speed data throughput of USB 3.0 technology. The PL-D775 camera provides low noise images for outstanding value for a broad range of industrial applications.
Typical applications of the PL-D775 include parts inspection, biometrics, strength testing, medical imaging, metrology, and PCB & flat panel display inspection.
The PL-D775 series of cameras are based on a Aptina rolling shutter sensor with a 1/2.5” optical format. The extensive builtin image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance. These cameras provide the user choice of 8-bit or 12-bit digitization and a dynamic range of 67dB in 12-bit mode. The external hardware trigger and 2 general-purpose outputs ensure users have the flexibility to synchronize the camera with their processes and illumination.
PixeLINK's industry leading SDK uses a common API for all cameras regardless of the chosen interface. Software code developed for one camera is easily transferred to other PixeLINK models without the need to recompile. Overall system costs are reduced and camera integration is simplified.
The flexible Region of Interest (ROI) control allows users to operate at higher frame rates by placing a lower resolution “window” on the imager at any location.
FEATURES:
Download Product PDF:
TECHNICAL INFORMATION:
- Sensor: Aptina CMOS
- Sensor Type: CMOS Rolling Shutter
- Resolution: 2592(H) x 1944 5.0 MP Color
- Pixel Pitch: 2.2 μm x 2.2 μm
- Active Area: 5.70 mm x 4.28 mm - 7.13 mm diagonal
- Max Datarate: 96 MHz
- Bit Depth: 8 or 12-bit
- FPN: <1 % of signal
- PRNU: <2.5 % of signal
- Dynamic Range: 67 dB
- Bit Depth: 8 or 12-bit
- Responsivity: 1.76V/lux-sec (550nm)
- Color Data Formats: Bayer 8, Bayer 16 and YUV422
- Dimensions: 32 x 48 x 11 mm (without lens mount)
- Weight: 35.8 g (without optics)
- Mounting: Holes for 0-80 hardware
- Lens Mount: C-mount, CS-mount and S-mount
Quick Info for the PixeLINK PL-D775CU
Camera Category: | Enclosed |
---|---|
Camera Series: | Industrial Vision Cameras |
FPS: | 15 |
Interface: | USB3 Vision |
Manufacturer: | PixeLINK |
Resolutions: | 5 MP |
Scanning Mode: | Area Scan |
Signal System: | Color |
Technology: | USB3 Vision Cameras |
Quick Info for the PixeLINK PL-D775CU-BL
Camera Category: | Board Level |
---|---|
Camera Series: | Industrial Vision Cameras |
FPS: | 15 |
Interface: | USB3 Vision |
Manufacturer: | PixeLINK |
Resolutions: | 5 MP |
Scanning Mode: | Area Scan |
Signal System: | Color |
Technology: | USB3 Vision Cameras |
Quick Info for the PixeLINK PL-D775MU
Camera Category: | Enclosed |
---|---|
Camera Series: | Industrial Vision Cameras |
FPS: | 15 |
Interface: | USB3 Vision |
Manufacturer: | PixeLINK |
Resolutions: | 5 MP |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
Technology: | USB3 Vision Cameras |
Quick Info for the PixeLINK PL-D775MU-BL
Camera Category: | Board Level |
---|---|
Camera Series: | Industrial Vision Cameras |
FPS: | 15 |
Interface: | USB3 Vision |
Manufacturer: | PixeLINK |
Resolutions: | 5 MP |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
Technology: | USB3 Vision Cameras |
