Sony XCL-5000 Camera
Get a Quote for the Sony XCL-5000
Please fill out the form below to request a quote. Fields marked with * are required.
XCL-5000 provides exceptional picture quality (2,448 x 2,050 pixels) and captures video at 15 frames per second

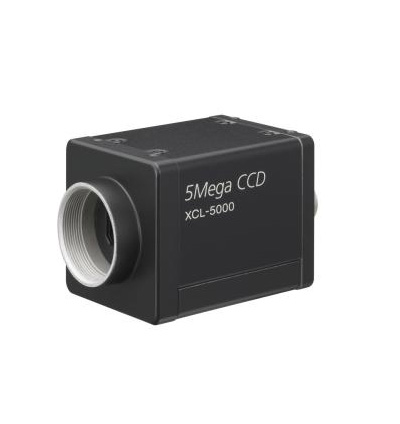

Sony's new 5 mega pixel ultra high-resolution XCL-5000 digital video camera incorporates a new Sony 2/3 type Progressive Scan CCD sensor with square pixels. The XCL-5000 provides exceptional picture quality (2,448 x 2,050 pixels) and captures video at 15 frames per second. The XCL-5000 camera supports up to 12-bit processing to output data quickly and efficiently.

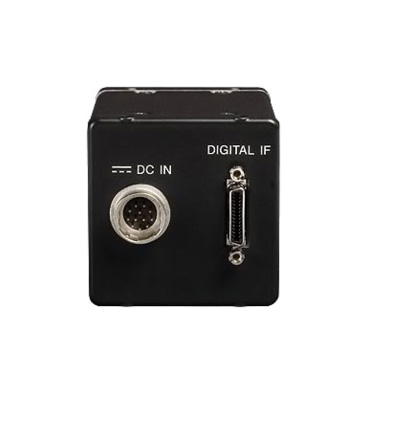

This camera enables the capture of high-speed, high-resolution images while simplifying connectivity to machine vision systems with its standard 3M MDR 26-pin connector. Incorporating a variety of convenient features such as partial scan and external trigger function allowing for the clear capture of fast moving objects or still images in low light environments. Sony's XCL Series are the ideal solution for today's wide range of machine vision applications.
FEATURES:
- NEW! 2/3 type Progressive Scan CCD image sensor
- Approximately 5 Mega pixel resolution
- 2,456 x 2,058 effective picture elements
- 2448 x 2050 pixels
- 15 full frames/sec
- High Sensitivity - 400 lux @ F5.6
- Compact & Lightweight: 44 (W) x 44 (H) x 57.5 (D) / 150g
- External Trigger Shutter: 2 to 1/10,000 sec
- Synchronization Signal: Internal/External (HD/VD)
- Partial Scanning & Binning Functions
Download Product PDF:
TECHNICAL INFORMATION:
- Image Device: 2/3 type Progressive Scan IT CCD
- Standard picture size (H x V): 2448 x 2050 (5,018,400 pixels)
- Cell size: 3.45 x 3.45 µm
- Lens mount: C mount
- Digital interface: Standard Camera Link (Base Configuration)/PoCL (Power over Camera Link)
- Frame rate: 15 fps
- Output data clock:
80 MHz (1 Tap)
40 MHz (2 Taps, Raw Color only) - Sensitivity: 400 lx F5.6 (0dB)
- Minimum illumination: 1 lx (GAIN +18dB, F1.4)
- Gain control: 0 to +18 dB
- Readout modes: Normal, Binning (1x2), Partial scan (by 1 line increments)
- Shutter speed: 2 to 1/10,000 s
- Shutter mode: External trigger shuter (Trigger start/Trigger start and exposure duration)
- Readout features:
Gamma : OFF/ON (Arbitrary setting)
DTL filter (Edge detection/emphasis),
3x3 matrix filter, Binarization - Extended signal output: DVAL/EXPOSURE/GND output (selectable)
- Power Requirements: DC12V
- Power Consumption: 3.8W
- Dimensions (WxHxD): 1 3/4 (W) x 1 3/4 (H) x 2 3/8 (D) inches ( 44 x 44 x 57.5 mm), (excluding protrusions)
- Weight: Approx. 4.6 oz (130 g)
- Operating Temperature: 23 to 113 °F (-5 to 45 °C)
- Storage humidity: -22 to 140 °F (-30 to 60 °C)
- Vibration resistance: 10G (20Hz to 200Hz)
- Shock resistance: 70 G
