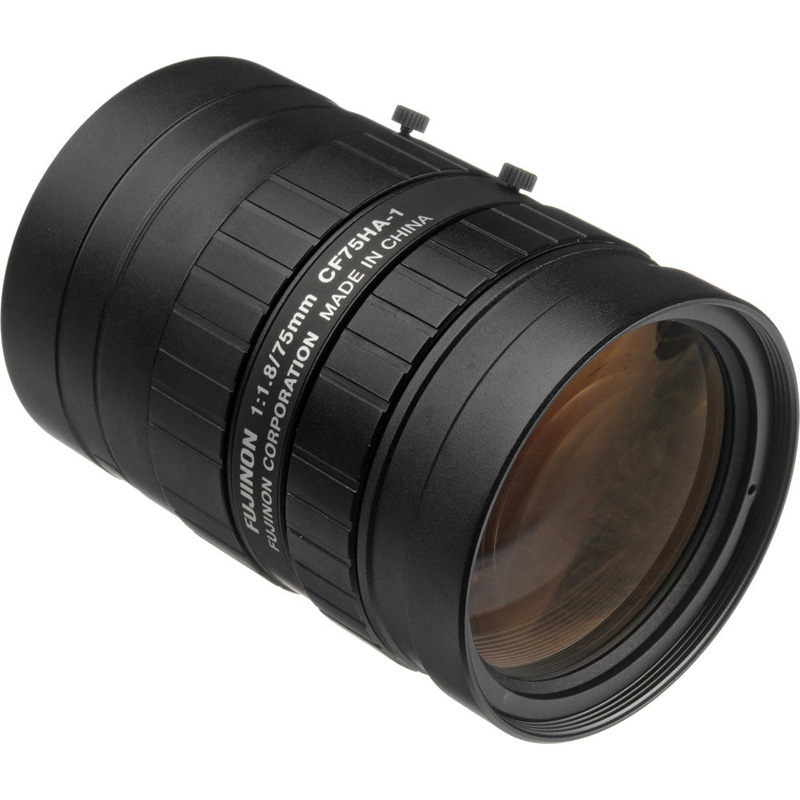

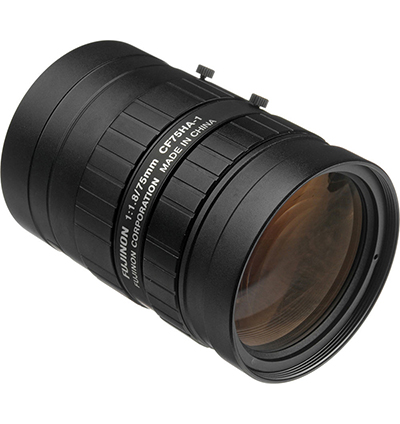

Fujinon CF75HA-1 C Mount Lens
Get a Quote for the Fujinon CF75HA-1 C Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
- High Resolution design, providing support for up to 1.5 megapixel camera resolution.
- Wide-aperture (F1.8) design achieves clear images under low light intensity, despite the long focal distance.
- Low-distortion design achieving accurate image input.
- Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.
Download Product PDF:
- Focus: Manual
- Iris: Manual
- Focal Length (mm): 75
- Iris Range: F1.8 ~ F22
- Back Focal Distance (in air) (mm): 24.43
- Exit Pupil Position (From Image Plane) (mm): -52
- Filter Thread (mm): M49 x 0.75
- Mass (g): 295
- Focusing Range (From Front Of The Lens) (m): ~ 0.9 (Using an extension tube longer than 5mm will increase the M.O.D. to 0.5m.)
- Angle of View:
1" - 14o35' x 10o 58'
2/3" - 10o 03' x 7o 33'
1/2" - 7o 19' x 5o 30'
- Object Dimensions at M.O.D. (H x V) (mm):
1" - 101 x 76
2/3" - 70 x 52
1/2" - 51 x 38
- Mount: C
